TSR200 Tech Sights Aperture Sight for Ruger 10/22
search
  • TSR200 Tech Sights Aperture Sight for Ruger 10/22
  • TSR200 Tech Sights Aperture Sight for Ruger 10/22
  • Tech Sights Aperture Sight for Ruger 10/22 TSR200
  • Tech Sights Aperture Sight for Ruger 10/22 TSR200
  • Tech Sights Aperture Sight for Ruger 10/22 TSR200

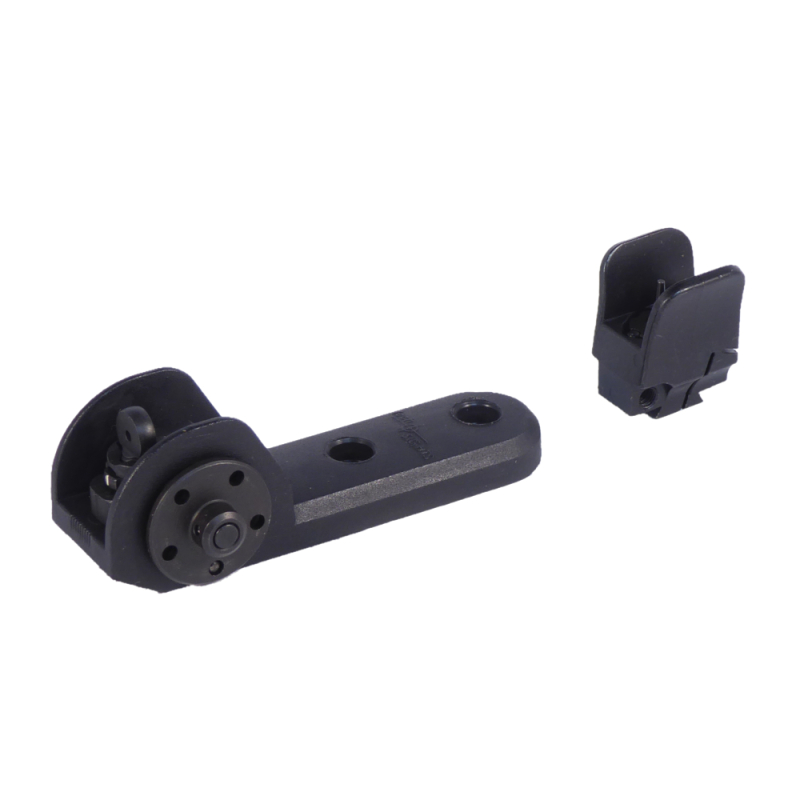

TSR200 Tech Sights Aperture Sight for Ruger 10/22

$68.95
See our Shipping Policy for details and restrictions.
In Stock - Ships Same Day
  • Ruger 10/22 replacement sights with fully adjustable front and rear aperture sights
  • Tech Sights TSR200 replaces the factory front and rear sights
  • Includes compatible front sight; factory front sight is not used
  • Rear aperture provides independent windage and elevation adjustment
  • Dual flip apertures with .062" openings
  • 8" longer sight radius than factory sights
  • All-steel construction
  • Fits Ruger 10/22 rifles drilled and tapped for scope mounts
Quantity
Ships Same Day

Tech Sights TSR200 Replacement Sights for Ruger 10/22

The Tech Sights TSR200 is a complete front and rear replacement sight system for the Ruger 10/22, combining a longer sight radius with adjustable aperture sights and independent windage and elevation adjustment at the rear sight. The TSR200 is particularly well suited to shooters who want more precise control when zeroing a Ruger 10/22 with iron sights.

The TSR200 replaces both the factory front and rear sights. The factory Ruger 10/22 front sight is not used with the Tech Sights system; the TSR200 includes its own compatible front sight tower and elevation-adjustable post.

For shooters comparing the TSR200 with the TSR100, the most important difference is rear-sight adjustment. The TSR100 provides windage adjustment at the rear and elevation adjustment through its front sight post. The TSR200 adds elevation adjustment directly to the rear aperture assembly, giving the shooter independent windage and elevation adjustment at the rear sight. For help identifying individual components, see our Tech Sights TSR100 and TSR200 parts diagram and replacement parts list.

TSR200 Features

  • Complete front and rear sight system: Includes the Tech Sights front sight assembly and adjustable rear aperture sight.
  • Rear windage and elevation adjustment: The TSR200 allows both major zeroing adjustments to be made at the rear sight.
  • 8" longer sight radius: Places the rear aperture farther from the front sight than the factory sight arrangement.
  • Adjustable front sight post: The included front sight tower uses an incremental detent-adjustable post.
  • Dual aperture design: The rear sight uses flip apertures with standard .062" openings.
  • Detent adjustments: Windage and elevation adjustments use positive detent stops for repeatable adjustments.
  • Steel construction: Built for durable use on the Ruger 10/22 platform.
  • Existing receiver mounting holes: The rear sight base attaches to the tapped scope-mount holes in compatible Ruger 10/22 receivers.

TSR200 vs. TSR100: What's the Difference?

The TSR100 and TSR200 are both Tech Sights aperture sight systems designed for the Ruger 10/22. Both replace the factory front and rear sights, provide an 8" longer sight radius, and use an adjustable Tech Sights front sight post. The primary difference is the amount and location of adjustment available at the rear sight.

Feature TSR100 TSR200
Rear windage adjustment Yes Yes
Rear elevation adjustment No Yes
Front elevation adjustment Yes Yes
Longer sight radius 8" longer 8" longer
Front and rear sights included Yes Yes
Best suited for Shooters who want a simple adjustable aperture sight Shooters who want independent windage and elevation adjustment at the rear sight

In practical terms, the TSR100 is a straightforward choice for shooters who are comfortable making elevation changes at the front sight. The TSR200 is the better choice when you prefer to make both windage and elevation corrections at the rear aperture, where they can be made without moving your point of aim to the front sight.

If you already own a TSR100, you do not necessarily need to replace the entire sight to gain rear elevation adjustment. The TS220 elevation-adjustable aperture can be used to upgrade a TSR100 to TSR200-style rear elevation adjustment.

Ruger 10/22 Replacement Sight Compatibility

The TSR200 is designed for Ruger 10/22 rifles that are drilled and tapped for scope mounts. It replaces the factory front and rear sights and uses the existing tapped receiver holes for rear-sight installation.

Important: The factory Ruger 10/22 front sight is not compatible with the Tech Sights rear aperture sight. It must be removed and replaced with the Tech Sights front sight assembly included with the TSR200.

Ruger 10/22 configurations with aftermarket barrels or other modifications may require additional components. In particular, a 10/22 equipped with a .920" target barrel may require the TS157 .920" barrel dovetail adapter to install the included Tech Sights front sight.

Ruger 10/22 Configuration Tech Sights Recommendation
Standard Ruger 10/22 drilled and tapped for scope mounts TSR200
Ruger 10/22 with .920" target barrel TSR200 with TS157 adapter
Ruger 10/22 where rear elevation adjustment is not needed TSR100
Ruger 10/22 with factory or aftermarket 3/8" dovetail rail TSR200RL

Why Choose the TSR200 for a Ruger 10/22?

The main reason to choose the TSR200 over the TSR100 is rear-sight elevation adjustment. With the TSR200, both windage and elevation can be adjusted at the rear aperture assembly. This makes the sight particularly useful for shooters who want a conventional rear-aperture sight with independent adjustment for zeroing.

The TSR200 also retains the practical advantages shared by the TSR100: a substantially longer sight radius than the factory sight arrangement, a durable steel construction, an adjustable front sight post, and an aperture sight picture that many shooters find easier to use precisely than traditional open sights.

If the additional rear elevation adjustment is not important to you, the TSR100 provides the same basic Tech Sights front-and-rear configuration at a lower price.

Installing the TSR200 on a Ruger 10/22

The TSR200 is designed to install using the existing mounting holes in a compatible Ruger 10/22 receiver. Installation includes removing the factory front sight and replacing it with the included Tech Sights front sight assembly, then attaching the rear sight to the receiver.

The factory front sight must be removed because it is not compatible with the Tech Sights rear aperture system. The installation does not require drilling or permanent receiver modification on a compatible rifle.

For detailed installation instructions, see our guide to installing Tech Sights on a Ruger 10/22 rifle. The guide covers installation of both the TSR100 and TSR200.

TSR200 Replacement Parts and Apertures

BJL Outdoors carries a selection of Tech Sights replacement parts for maintaining and customizing Tech Sights systems. Use our TSR100 and TSR200 parts diagram and parts list to identify components by part number and find links to available replacement parts. The 200-series sights are also compatible with different aperture sizes, allowing shooters to change the rear aperture to suit their preferences.

Available 200-series aperture options include the .086" aperture, .125" aperture, and .042" aperture, in addition to the standard .062" aperture.

Tech Sights TSR200 FAQ

What is the difference between the TSR100 and TSR200?

The TSR100 has windage adjustment at the rear sight and elevation adjustment through the front sight post. The TSR200 adds elevation adjustment to the rear aperture, allowing both windage and elevation to be adjusted at the rear sight.

Is the TSR200 a replacement sight for the Ruger 10/22?

Yes. The TSR200 is a complete front and rear replacement sight system for the Ruger 10/22. It replaces the factory sights with a longer-radius aperture sight system.

Does the TSR200 use the factory Ruger 10/22 front sight?

No. The factory front sight is not compatible with the Tech Sights rear aperture sight. The TSR200 includes a Tech Sights front sight assembly designed to work with the rear aperture.

Does the TSR200 have windage and elevation adjustment?

Yes. The TSR200 provides both windage and elevation adjustment at the rear sight. The front sight post is also elevation adjustable.

Is the TSR200 better than the TSR100?

Neither sight is universally better. The TSR200 is the better choice if you want independent windage and elevation adjustment at the rear sight. The TSR100 provides windage adjustment at the rear and elevation adjustment at the front and may be preferable if you do not need rear elevation adjustment.

Will the TSR200 fit my Ruger 10/22?

The TSR200 is designed for Ruger 10/22 rifles drilled and tapped for scope mounts. Some modified rifles may require additional components, so verify your rifle configuration before ordering.

Will the TSR200 work with a Ruger 10/22 with a .920" barrel?

Yes, when used with the appropriate TS157 .920" barrel adapter. The adapter allows the Tech Sights front sight included with the TSR200 to be installed on compatible .920" target barrels.

How much longer is the TSR200 sight radius?

The TSR200 provides an 8" longer sight radius than the factory Ruger 10/22 sight arrangement.

Can I use different aperture sizes with the TSR200?

Yes. The TSR200 is a 200-series Tech Sights aperture sight and can use different aperture sizes. BJL Outdoors carries several replacement aperture options for 200-series Tech Sights.

Can I convert a TSR100 to a TSR200?

Yes. A TSR100 can be upgraded with the TS220 elevation-adjustable aperture to add rear elevation adjustment.

Can I install the TSR200 myself?

The TSR200 can generally be installed by the owner on a compatible Ruger 10/22 without gunsmithing or permanent receiver modification. See our Ruger 10/22 Tech Sights installation guide for detailed instructions.

Does the TSR200 require batteries?

No. The TSR200 is a mechanical aperture sight system and does not require batteries or electronics.

Shipping Tech Sights to Canada

We do ship Tech Sights for Ruger 10/22 to Canada. Please view our page on Shipping Tech Sights to Canada for more information.

To install your Tech Sights, please check out our guide to installing Tech Sights on the Ruger 10/22 rifle.
