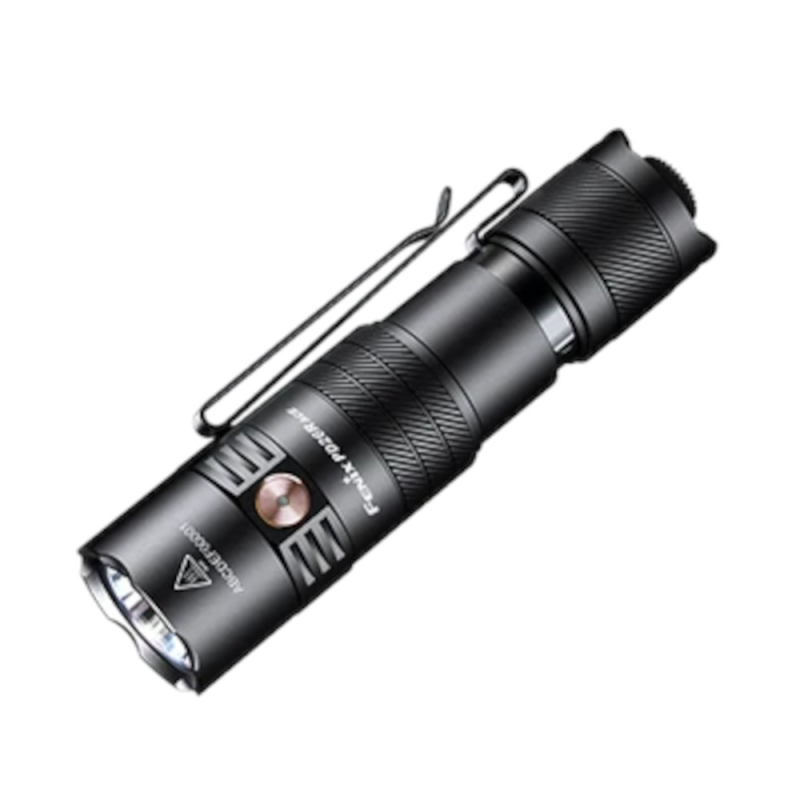

Fenix PD26R ACE Rechargeable Flashlight

The Fenix PD26R ACE is a compact rechargeable flashlight designed for everyday carry, outdoor activities, and users who want control over their available lighting modes. Its Luminus SFT25R LED produces up to 1,300 lumens and a maximum beam distance of 354 meters, delivering substantial output in a body just 106 mm long.

The PD26R ACE features Fenix's customizable SET system, which lets you choose between three operating configurations to simplify access to the brightness levels you use most. A tactical tail switch provides instant activation, while a neck-mounted switch controls brightness and configuration settings. The included 1,600mAh rechargeable 18350 battery charges through a hidden USB Type-C port beneath the neck collar.

Key Features of the Fenix PD26R ACE

• 1,300-lumen maximum output: The Luminus SFT25R LED delivers high-output illumination with a maximum beam distance of 354 meters.
• Customizable SET system: Choose from three preset configurations to simplify the available brightness levels.
• Strobe control: Strobe can be enabled or disabled to suit your preferred setup.
• Five brightness levels: The full configuration offers Turbo, High, Medium, Low, and Eco modes.
• Instant activation: The tactical tail switch supports momentary activation and constant-on operation.
• Hidden USB-C charging: A protected USB Type-C port is concealed beneath the neck collar.
• Rechargeable 18350 battery: Includes a Fenix ARB-L18-1600 lithium-ion battery with 1,600mAh capacity.
• Battery-level indicator: A built-in indicator displays the remaining charge when the flashlight is switched on.
• Compact aluminum body: Features A6061-T6 aluminum construction, a hard-anodized finish, anti-roll design, and anti-slip surfaces.
• IP68 protection: Designed for dust resistance and water immersion under the manufacturer's specified conditions.

Customizable SET Modes

The PD26R ACE lets you tailor the flashlight's available brightness levels to your preferences. The SET switch is concealed beneath the neck collar and allows you to cycle through three configurations. You can also disable strobe independently.

With the flashlight switched on, use the SET switch to select the desired configuration. The selected option is indicated by the light's status indicator. Follow the manufacturer's instructions to enable or disable strobe and to access SOS when available in the selected configuration.

Brightness, Beam Distance, and Runtime

The PD26R ACE combines a 354-meter maximum beam distance with lower-output modes for close-range tasks and extended runtime. Turbo delivers the full 1,300 lumens, while Eco mode provides a 1-lumen output for situations where minimal illumination is sufficient.

*Turbo runtime includes periods when output is reduced by the flashlight's thermal protection. Actual performance varies with temperature, battery condition, and operating conditions.

Rechargeable Battery and USB-C Charging

The Fenix PD26R ACE includes an ARB-L18-1600 rechargeable 18350 lithium-ion battery with a capacity of 1,600mAh. To access the hidden USB Type-C charging port, loosen the neck collar as directed in the manual. The charging indicator displays red while charging and green when the battery is fully charged.

The battery-level indicator also provides a status check when the flashlight is turned on. Fenix recommends using a compatible ARB-L18-series 18350 battery. Do not substitute incompatible 16340 or LiFePO4 batteries. Follow the manufacturer's charging, storage, and battery-handling instructions.

Fenix PD26R ACE Specifications

What's Included

• Fenix PD26R ACE flashlight
• Fenix ARB-L18-1600 rechargeable 18350 lithium-ion battery
• USB Type-C charging cable
• Holster
• Lanyard
• Two spare O-rings
• User documentation
