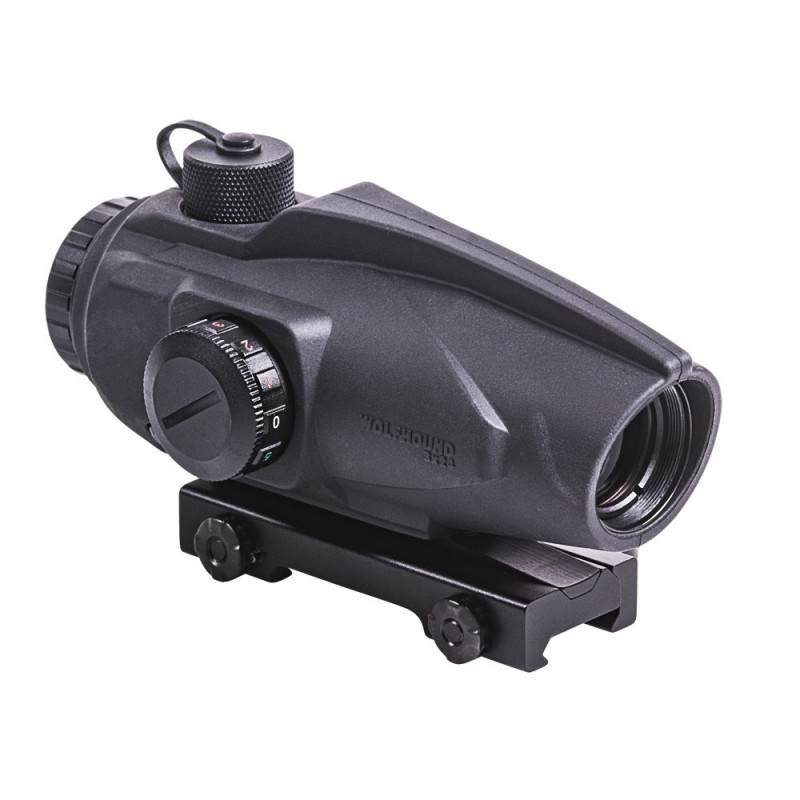

Sightmark Wolfhound 3x24 HS-223 LQD Prismatic Sight SM13025-LQD

Sightmark Wolfhound 3x24 HS-223 Prismatic Sight SM13025-LQD

Delivering flawless short- to medium-range shots, the Sightmark® Wolfhound 3x24 Prismatic Weapon Sight is ideal for a variety of challenging shooting situations including 3-gun competitions, hunting and law enforcement applications. The Wolfhound 3x24 Sight is a military-inspired, fast-paced optical device featuring longer than average eye relief and an advanced horseshoe dot reticle that’s ballistically matched to .223, 55 and 62 grain with holdovers from 300 to 900 yards. Its fixed power keeps the object in focus at 10 yards or more. Compact enough to not weigh down the rifle, but durable enough to shield from impact, the device includes a built-in aluminum Picatinny mount and rubber armor finish. Fully submergible, the Wolfhound 3x24 Sight is 100% waterproof, dust proof and shock proof.

Features

• Wide range of operating temperature, -40 to 122F
• Fully multi-coated optics
• Prismatic optical system
• Scratch resistant lenses
• Red/Green reticle illumination
• Rubber armored, single piece 6061-T6 aluminum housing

Specifications

• Reticle Type: HS-223
• Reticle Color: Red/Green
• Reticle Brightness Settings: 5
• Magnification: 3x
• Illuminated (Yes/No): Yes
• Finish/Color: Black
• Objective Lens Diameter: 24mm
• Eyepiece diameter: 27mm
• Exit pupil diameter: 8mm
• Eye Relief: 72mm
• Field of view (m @100m): 10.48
• Field of view (ft @100yd): 31.6
• Field of view (degrees): 6
• Parallax setting (yds): 100
• Diopter adjustment (+/-): +3 - -3
• Windage maximum adjustment range: 180 MOA
• Elevation maximum adjustment range: 160 MOA
• Windage Elevation lock (yes/no): No
• MOA adjustment (one click): 1/2
• Maximum recoil (G's): 800
• Exit pupil diameter: 8mm
• Battery type: CR2032
• Battery life (hours): 200-4000
• Battery voltage: 3v
• Sunshade: No
• Waterproof/nitrogen filled: Yes
• Shockproof: Yes
• Fog proof: Yes
• IP Standard (water rating) IP68
• Body material: Aluminum 6061 / Rubber
• Lens Material/type: Glass
• Lens Coatings: Fully multicoated
• Mount type: Quick detach Picatinny
• Operating Temperature (°F): -40 to 122
• Dimensions: 150x72x77
• Weight: 19.9 oz
