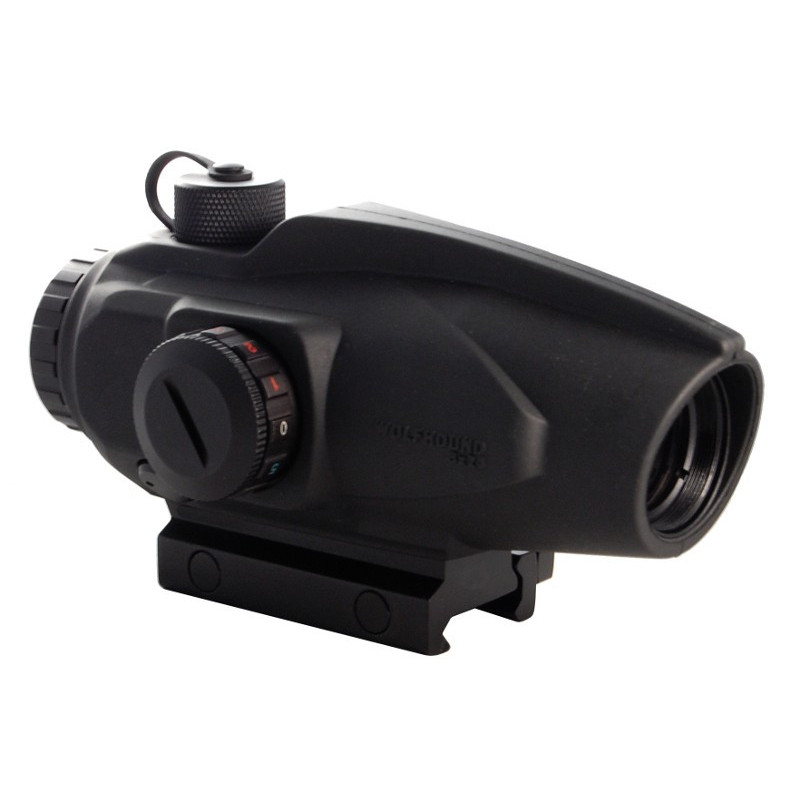

Sightmark Wolfhound 3x24 HS-223 Prismatic Sight SM13025

Sightmark Wolfhound 3x24 HS-223 Prismatic Sight Review

Delivering flawless short- to medium-range shots, the Sightmark® Wolfhound 3x24 Prismatic Weapon Sight is ideal for a variety of challenging shooting situations including 3-gun competitions, hunting and law enforcement applications. The Wolfhound 3x24 Sight is a military-inspired, fast-paced optical device featuring longer than average eye relief and an advanced horseshoe dot reticle that’s ballistically matched to .223, 55 and 62 grain with holdovers from 300 to 900 yards. Its fixed power keeps the object in focus at 10 yards or more. Compact enough to not weigh down the rifle, but durable enough to shield from impact, the device includes a built-in aluminum picatinny mount and rubber armor finish. Fully submersible, the Wolfhound 3x24 Sight is 100% waterproof, dust proof and shock proof.

Specifications

Reticle Type HS-223
Reticle Color Red/Green
Reticle Brightness Settings 5
Magnification, x 3
Illuminated (Yes/No) Yes
Finish/Color Black
Objective Lens Diameter, mm 24
Eyepiece diameter, mm 27
Exit pupil diameter, mm 8
Eye Relief, mm 72
Field of view (m @100m) 10.48
Field of view (ft @100yd) 31.6
Field of view (degrees) 6
Parallax setting (yds) 100
Diopter adjustment (+/-) +3 ... -3
Windage maximum adjustment range (MOA) 180
Elevation maximum adjustment range (MOA) 160
Windage Elevation lock (yes/no) No
MOA adjustment (one click) 1/2
Maximum recoil (G's) 800
Exit pupil diameter, mm 8
Eye Relief, mm 72
Battery type CR2032
Battery life (hours) 200-4000
Battery voltage (V) 3
Sunshade (yes/no) No
Waterproof/nitrogen filled (yes/no) Yes
Shockproof (yes/no) Yes
Fog proof (yes/no) Yes
IP Standard (water rating) IP68
Body material Aluminum - 6061 / Rubber
Lens Material/type Glass
Lens Coatings Fully multicoated
Mount type Picatinny
Operating Temperature (°F) -40 to 122
Dimensions, mm 150x72x77
Weight, oz 17.2
