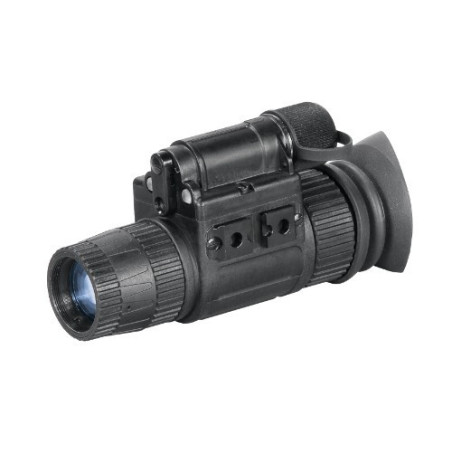

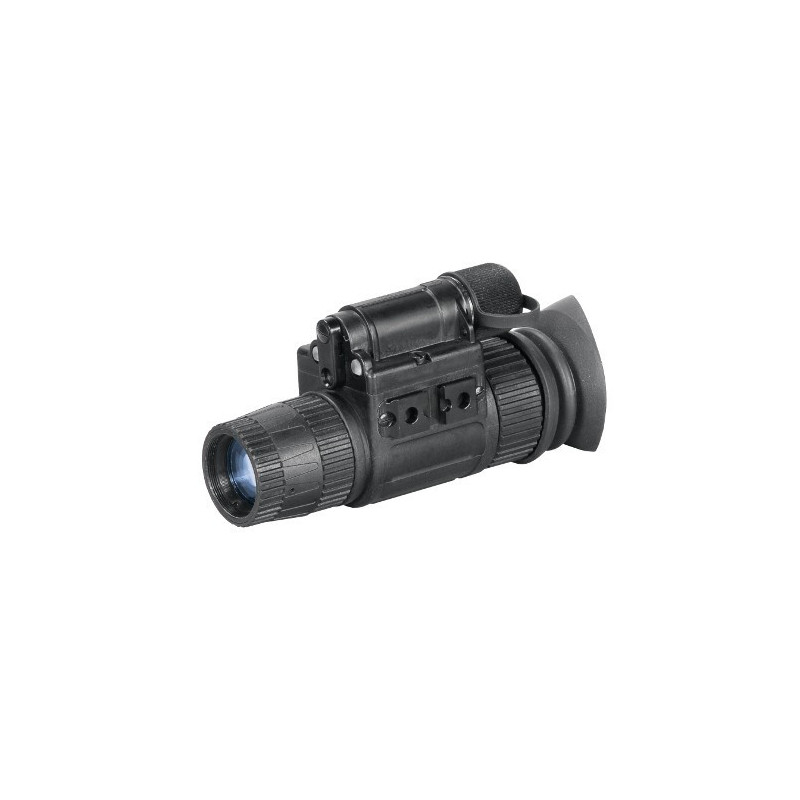

Armasight N-14 SD Night Vision Monocular NSMN14000126DS1

Armasight N-14 SD Night Vision Monocular Review

The Armasight N-14 is the new standard by which all compact multi-use monoculars will be judged in future. The N-14 uses optics that are equal to or better than current Military issue night vision units, built into a tough, compact and ergonomic composite housing. We built this body to surpass MIL-SPEC-810 specifications, and so the Armasight N-14 can withstand salt water, rain, high humidity, extremes of temperature and still give unsurpassed levels of performance. The Armasight N-14 is available with a whole array of accessories like 3, 5 and 8X magnification lenses for mid-long range viewing, head or helmet mounts to allow the unit to be worn as a mono-goggle, various different weapon mounts for tactical or hunting use and detachable IR illuminator for long range use.

FEATURES

• Compact, rugged design
• Waterproof
• Weapon mountable
• Head or helmet mountable for hands-free usage
• Auto brightness control
• Bright light cut-off
• Ergonomic, simple, easy to operate controls
• Utilizes single CR123A lithium battery
• Adaptable for use with cameras
• Built-in Infrared illuminator and flood lens
• Limited two-year warranty

Specification

• IIT Generation Gen 2+ SD
• Resolution 45-51 lp/mm
• Magnification 1x standard 3x, 5x, 8x optional
• Battery Life up to 60 Hrs
• Lens System F1.2 27 mm
• FOV 40°
• Range of Focus 0.25 to infinity
• Diopter Adjustment -6 to +2
• Controls Direct
• Automatic Brightness Control Yes
• Bright Light Cut-off Yes
• Automatic Shut-off System Yes
• Infrared Illuminator Yes (With built-in flood lens)
• IR Indicator Yes (in FOV)
• Low Battery Indicator Yes (in FOV)
• Power Supply 1x CR123A (3V)
• Environmental Rating Waterproof
• Operating Temperature -40 to +50°C
• Storage Temperature -50 to +70°C
• Dimensions 140 x 49 x 69 / 5.5 x 1.9 x 2.7 (mm/in)
• Weight 0.34/0.75 (kg/lbs)
• Warranty 2 Years
